Question 1 of 20
1. Question
An ammeter measures what?
CorrectIncorrect -
Question 2 of 20
2. Question
A 120 V light bulb is rated for 40 watts. What is the light bulb’s current rating?
CorrectIncorrect -
Question 3 of 20
3. Question
What color is Neutral wire?
CorrectIncorrect -
Question 4 of 20
4. Question
What voltage will cause an 8 Amp current to flow through a 24 ohm resistor?
CorrectIncorrect -
Question 5 of 20
5. Question
The electronic symbol shown below represents a(n)
CorrectIncorrect -
Question 6 of 20
6. Question
AC is an abbreviation for
CorrectIncorrect -
Question 7 of 20
7. Question
Two 16 ohm speakers are connected in parallel to an amplifier that provides a 32 volt output. The voltage across each speaker is?
CorrectIncorrect -
Question 8 of 20
8. Question
Which of the following electronic components can store a charge?
CorrectIncorrect -
Question 9 of 20
9. Question

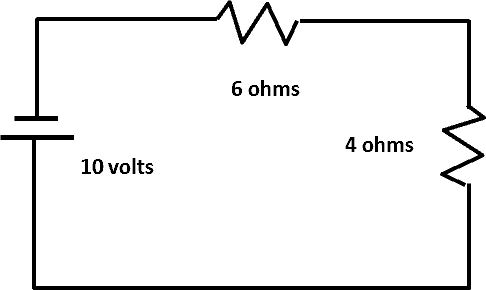

The current in the 4 ohm resistor is
CorrectIncorrect -
Question 10 of 20
10. Question

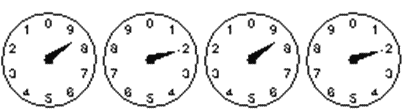

What is the reading on the kilowatt-hour meter shown below
CorrectIncorrect -
Question 11 of 20
11. Question
The electronic symbol shown below represents a(n)
CorrectIncorrect -
Question 12 of 20
12. Question
What is the voltage across and current through the resistor R when the switch is open?
CorrectIncorrect -
Question 13 of 20
13. Question
What is the reading on the kilowatt-hour meter shown below
CorrectIncorrect -
Question 14 of 20
14. Question
Resistance is measured in?
CorrectIncorrect -
Question 15 of 20
15. Question
What is the total resistance when two 10 ohm resistors are connected in series?
CorrectIncorrect -
Question 16 of 20
16. Question
Electric power can be measured by what type of instrument?
CorrectIncorrect -
Question 17 of 20
17. Question
Using a fuse rated higher than the required current rating of a circuit can
CorrectIncorrect -
Question 18 of 20
18. Question
A circuit contains three parallel resistors. Each resistor has 3 amps flowing through them. What is the total current flowing through the circuit?
CorrectIncorrect -
Question 19 of 20
19. Question
A typical home outlet has how much voltage?
CorrectIncorrect -
Question 20 of 20
20. Question
The measurement “mil” refers to
CorrectIncorrect
